Alu. Tiltable Tower Ladder

Top-tier Aluminium Tiltable Tower Ladder manufacturers in Gujarat - superior quality, durable, and safe for industrial uses. Ace your work with us. Contact us for Shop Now from Daskroi, Rakhial, Ahmedabad-380023, Gujarat, India.

Model No.SE-170

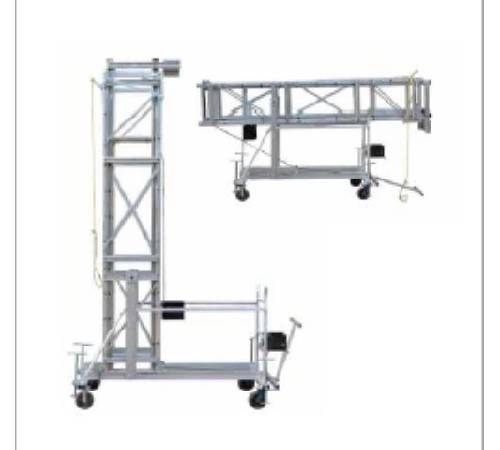

Product description Manufactured from high tensile Aluminium Alloy this ladder is designed to pass through a small entrance and avoid overhead obstruction, this ladder can be tilted into a horizontal position. Hand operated Winch gear is provided with required wire rope and pulleys for Tilting & Extending the ladder. A Cubical Platform and Tools tray are provided for comfortable working at heights. Heavy M.S Trolley base is equipped with wheels, turning Devices, jacks, etc.

Yes I am Interested

Section Size width :Alumnium 'C' section Size : 66.6mm x 31.25mm x 3mm thickness
Step Details :Alumnium 25.4mm Round corrugated tube
Base Material of construction : M.S channel 100mm x 50mm & M.S angles 40mm x 40mm
Wheel Size & Material of construction : 8inch x 3 inch polymer wheels with bearings 4nos with bracket(2nos. Swivel & 2nos. Fixed)
Operating Facility : 1no. Winch Gear machine with required 8mm wire rope & pulleys for extending & closing the ladder
Size of Platform : 18inch x 21inch(3ft. Below from top
Mechanism for tilting : 1no. Winch Gear machine with required wire rope & pulleys
Locking Facility :Pendulam Lock , Winch gear equipped with dual locking facilities
Distance between two steps :12" inches c/c
Others : Tools tray on top, safety stoppers, safety belt, safety helmet,4nos. Jack,turning device,etc
Confirms to : HE-30grade T-6 Temper, IS : 733 - 1982
