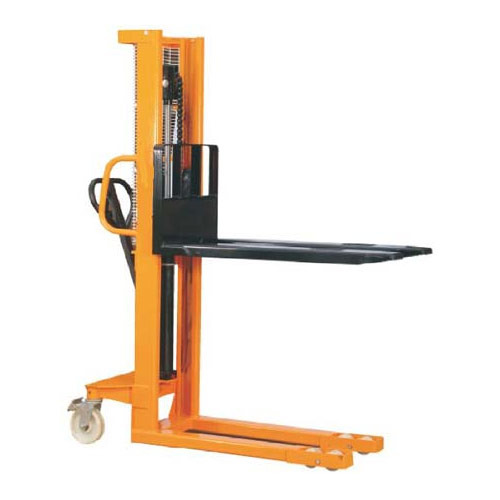

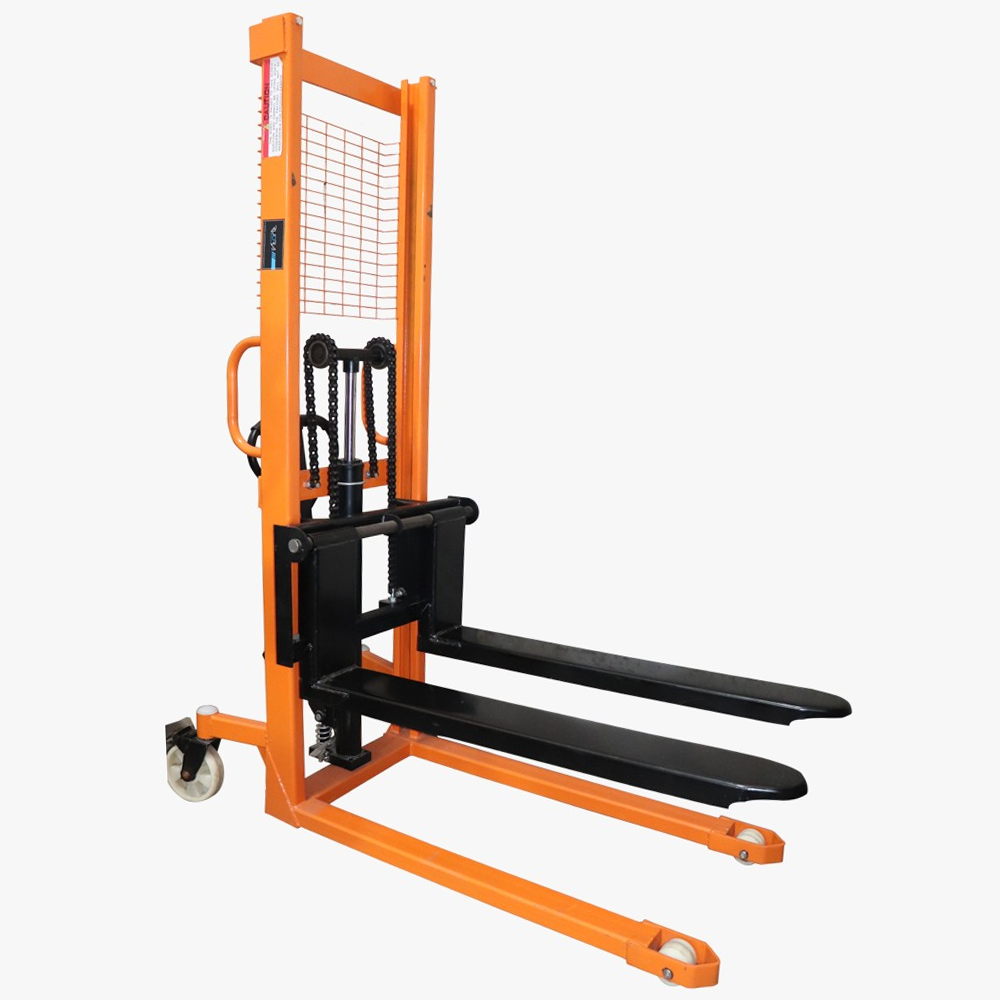

Manual Hydraulic Stacker
Explore top-quality Manual Hydraulic Stackers in Ahmedabad. Connect with leading manufacturers for efficient, durable stackers designed for your needs. Contact us for Shop Now from Daskroi, Rakhial, Ahmedabad-380023, Gujarat, India
Model No.SE-109
Shreeji manual stacker is a hand push & hand lift stacker which provides cost-effective handling for both vehicles loading & production areas. East maintenance & low running costs
Yes I am Interested
Specification.:
| Model | SE-109 | SE-109 | |
| Rated Capacity | kg | 500 | 1000 |
| Load Center | mm | 600 | 600 |
| Max. Fork Height | mm | 1600 | 1600 |
| Fork Length | mm | 1150 | 1150 |
| Fork Width | mm | 550/300-700 | 550/300-700 |
| Turning Radius | mm | 1500 | 1500 |
| Wheelbase | mm | 1100 | 1100 |
| Overall Length | mm | 1650 | 1650 |
| Overall Width | mm | 760 | 760 |
| Overall Height | mm | 2100 | 2100 |
| Self-Weight | kg | 210-250 | 210-250 |
| Price | Rs.34,500.00 | Rs.45,500.00 |
Features:
- Basic capacity from 1 Ton.
- Lift heights: Mono and telescopic masts from 1.6 Mtr.
- Special Fork Length & Width.
- Robust construction.
- Pump assembly includes neutral position for controlled handling of load.
- Pistons and cylinder are hard chrome Plated.
- Double sealed high pressured polyurethane seals are used to prevent leakage.
- Industry’s Best Warranty – 1 year.
- Lifting speed – 14 mm/stroke.
- Our Stackers are suitable, where lifting is primary and the transport distance is short
