Fully Drive Opearated Stacker

Explore top-rated manufacturers in India of fully drive operated stackers. Superior quality, efficiency & durability. Upgrade your industrial operations today.Contact us for Shop Now from Daskroi, Rakhial, Ahmedabad-380023, Gujarat, India.

Model No.SE-114

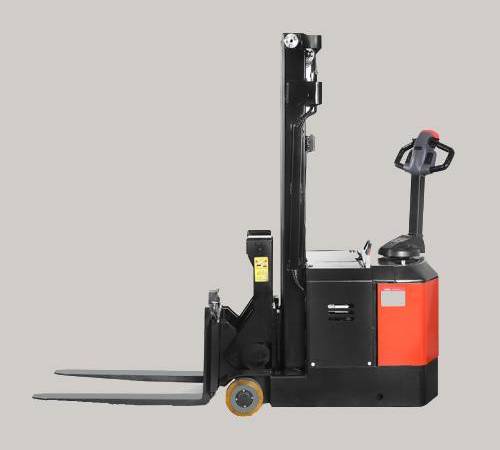

Shreeji heavy duty power stacker is a comfortable and highly secure fork-over leg electric stacker with high lifting and free lifting height. Equipped with AC drive system. Standard equipped with 210 Ah lead-acid sideway battery, metal cover. If you are looking for products to loading-unloading, or ordinary pallet stacking such medium duty working condition, Shreeji heavy duty power will be your choice.

Yes I am Interested

Specifications:

Model		SE-114	SE-114	SE-114
Mast Type		Duplex	Triplex	Triplex
Mast profile		H model	H model	H model
Type of drive		Full Electric	Full Electric	Full Electric
Operator type		Rider	Rider	Rider
Capacity	kg	1200	1500	1500
Load center	mm	600	600	600
Wheel base	mm	1380	1395	1395
Electric power steering(EPS)		Optional	Optional	Optional
Service weight without battery	kg	720	1170	1170
Service weight with battery	kg	930	1405	1435
wheel type		PU	PU	PU
Size of front wheels	mm	? 78	? 78	? 78
Size of rear wheels	mm	? 124	? 124	? 124
Size of drive wheels	mm	? 230	? 230	? 230
Wheels quantity	pcs	01-02-2004	01-02-2004	01-02-2004
Mast lower height		2045	2245	2445
Mast extend height	mm	3540	5595	6095
Overall length (with platform)	mm	2540	2590	2590
Overall length (without platform)	mm	2000	2050	2050
Rear body width	mm	800	800/850	800/850
			(h3 ≥5000mm	(h3 ≥5000mm
			:850mm)	:850mm)
Rear body length	mm	585	585	585
Overall width	mm	800	940	940
			(h3 ≥5000mm	(h3 ≥5000mm
			:990mm)	:990mm)
Height of tiller arm in drive position min./max.	mm	1030-1200	1030-1200	1030-1200
Rear body height	mm	830	830	830
Clearance	mm	40	40	40
Fork length	mm	1150	1150	1150
Overall fork width	mm	540/560/580/680
Min.Turning radius	mm	2090	2102	2102
(with platform)
Min.Turning radius	mm	1565	1578	1578
(without platform)
Lowered height of fork	mm	90	90	90
Fork width	mm	170	170	170
Price		Rs.4,95,000.00	Rs.6,50,000.00	Rs.7,85,000.00
